Understanding the Core Components of a Transmission: Valve Body, Solenoid Valves, and Sensors

The transmission is the 'central nervous system' of a car's power transmission, and the valve body, solenoid valves, and sensors are the three most critical 'core components' within this system—they all work together, and any one of them will cause chaos. No need to memorize complex principles; after reading this article, you'll easily understand their respective roles.

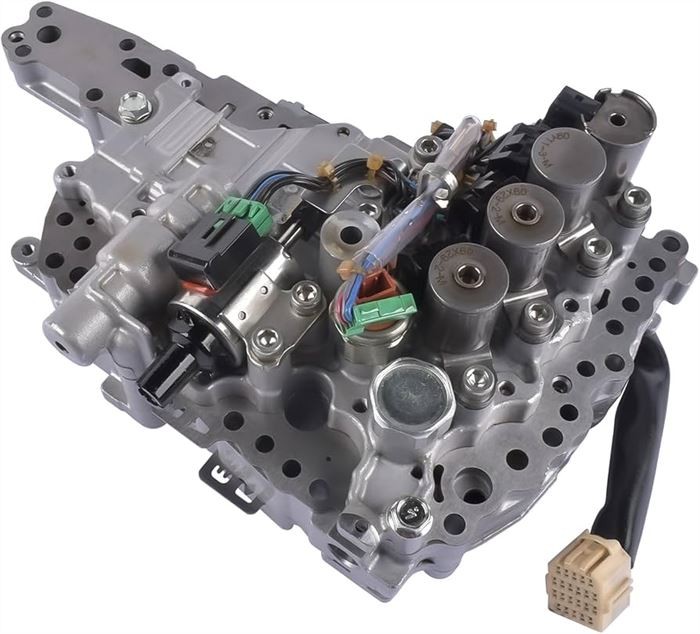

I. Valve Body: The Transmission's 'Hydraulic Brain'

Core Role: Controls the hydraulic oil as the 'master switch,' essentially the transmission's 'commander,' directly determining the smoothness of gear shifts.

Simply put, its interior is filled with precision oil passages and valves, like a complex 'traffic hub,' responsible for distributing the flow, speed, and pressure of the hydraulic oil, guiding the transmission to complete gear shifts and power transmission. Whether it's an automatic transmission (AT) or a dual-clutch transmission, the valve body is the core carrier of the hydraulic control system. If it becomes blocked or damaged, problems such as shift jerking, delayed gear engagement, or even the inability to shift gears will occur.

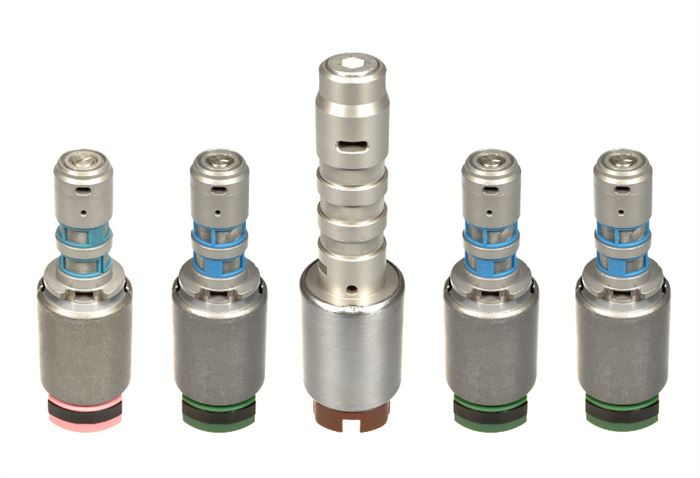

II. Solenoid Valves: The Valve Body's 'Execution Expert'

Core Role: Receives commands and executes them precisely, serving as the 'bridge' connecting electronic control and hydraulic action.

It is a key component on the valve body, controlled by the transmission control unit (TCU). Through the switching of current or pulse width adjustment, it controls the opening and closing of the valve, thereby precisely regulating the pressure and flow of hydraulic oil. Common types are on-off and duty cycle; the former switches oil passages, while the latter smoothly regulates oil pressure to ensure shock-free gear shifts. A malfunctioning solenoid valve can lead to disordered shifting logic, frequent jerking, and in severe cases, the transmission may enter a fault mode.

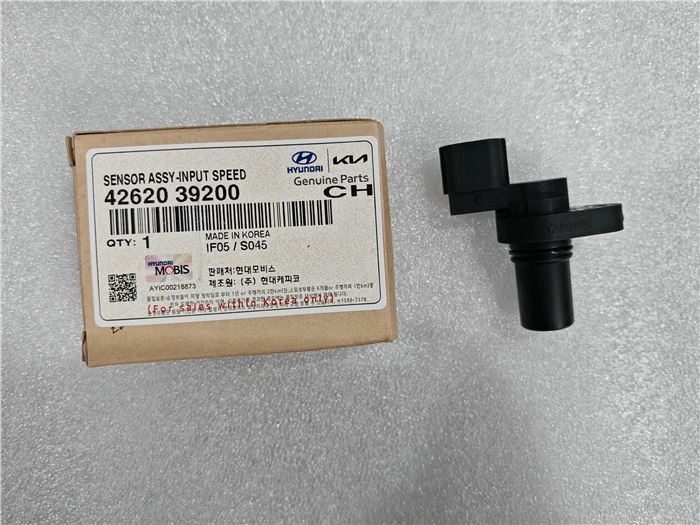

III. Sensors: The Transmission's 'Sensing Organs'

Core Role: Real-time 'reconnaissance' of operating conditions, transmitting crucial data to the TCU, essentially acting as the transmission's 'eyes and ears.'

They primarily monitor key parameters such as transmission oil temperature, oil pressure, engine speed, and gear position, feeding this data back to the TCU in real time. Based on this data, the TCU determines the vehicle's driving status and sends precise commands to the solenoid valves and valve body to ensure optimal shift timing. Sensor malfunctions render the TCU 'blind and deaf,' unable to accurately control shifts, potentially resulting in late upshifts, premature downshifts, or even power interruption.

Three-way Interaction: An Indispensable 'Golden Combination'

Sensor detects operating conditions → Transmits data to TCU → TCU issues commands → Solenoid valve executes precisely → Valve body distributes hydraulic oil → Smooth gear shifting is achieved.

In short: The valve body handles 'distribution,' the solenoid valve handles 'execution,' and the sensor handles 'detection.' These three work together to ensure stable transmission operation and a smoother driving experience. Regularly changing the transmission fluid in daily driving effectively protects these three components, preventing blockages or wear due to impurities in the fluid, thus extending the transmission's lifespan.
